Product introduction:

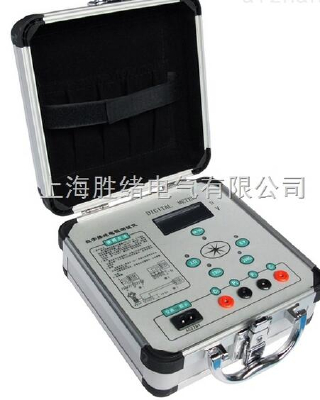

DMG2671B electronic insulation resistance tester is power, post, telecommunications, electrical and mechanical installation and maintenance, as well as the use of power industry as an industrial power or energy of the industrial enterprise sector commonly used and indispensable instrument. It is suitable for measuring the resistance value of various insulating materials and insulation resistance of transformer, motor, cable and electrical equipment.

Two, DMG2671B electronic insulation resistance tester product characteristics:

Output power, high load capacity, strong anti-interference ability.

Do not need human power, power supply, range can be automatically converted. At a glance the panel operation and LCD display makes the measurement very convenient and fast.

The output short circuit current can be directly measured, and the measurement is not needed to estimate the short circuit current.

Three, DMG2671B electronic insulation resistance tester product parameters:

Conditions of use

Ambient temperature: the temperature of 0 DEG 45 DEG relative humidity: less than 85%RH

Output voltage level, measurement range, resolution, error

Output voltage level: 500V, 1000V, 2000V, 2500V

Measurement range: 0 ~ 19999M

Resolution: 0.01M, 0.1M,, 1.0M, 10.0M

Relative error: 0 ~ 10000M = Omega 5% 2D

10000M ~ 19999M = 10% 2D

Maximum output voltage and load capacity

Voltage / load 0:2500V/20M

Voltage drop: about 10%

Short circuit current: >1.6mA

The DMG2671B electronic tramegger scope and power loss of power

DC: 8 x 1.5V (AA, R6) battery or rechargeable battery

AC: 220V/50Hz

Static power consumption: less than 160mW; the maximum power is less than 2.5W

The volume and weight.

Volume: 217mm (L) * 217mm (W) * 133mm * (D);

Weight: <1.8kg
