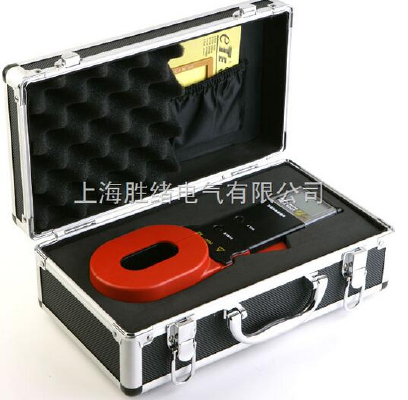

The use of ETCR2100C forcipated grounding resistance tester, select the preferred Sheng Xu, Sheng Xu, is to choose rest assured. Shanghai Sheng Xu electrical engaged in electrical technology in the field of technology development, electric power testing equipment, instrumentation, power industry automation system development, production and sales of high-tech enterprises.

Measurement range:

Measurement model

measuring range

Resolution power

Accuracy

resistance

0.010~0.099 (Ohm)

0.001 (Ohm)

(1% 0.01)

0.10~0.99 (Ohm)

0.01 (Ohm)

(1% 0.01)

1.0~49.9 (Ohm)

0.1 (Ohm)

(1% 0.1)

50.0~99.5 (Ohm)

0.5 (Ohm)

(1.5% 0.5)

100~199 (Ohm)

1 (Ohm)

(2% 1)

200~395 (Ohm)

5 (Ohm)

(5% 5)

400~590 (Ohm)

10 (Ohm)

(10% 10)

600~1000 (Ohm)

20 (Ohm)

(20% 20)

Electric current

MA 0.00~299

1 mA

(mA 2.5% 2) ( )

A 0.30~2.99

10 mA

(mA 2.5% 10) ( )

A 3.00~20

10 mA

(mA 2.5% 20) ( )

ETCR2100C forcipated ground resistance tester general specifications:

Display: 4 bit LCD digital display

Operating temperature: -10 degrees C -55

Working humidity: relative humidity 10%-90%

Can store measurement data: 50 groups

Resistance alarm threshold setting range: 1-199

Current alarm threshold setting range: 1-499mA

Protection level: double insulation

Structural features: jaw way

Power supply: 5 section 4 alkaline dry battery (6V)

Jaw opening size: 32mm

Instrument quality (including battery): 1120g

Instrument size: long 260mm, wide 90mm, thick 66mm
